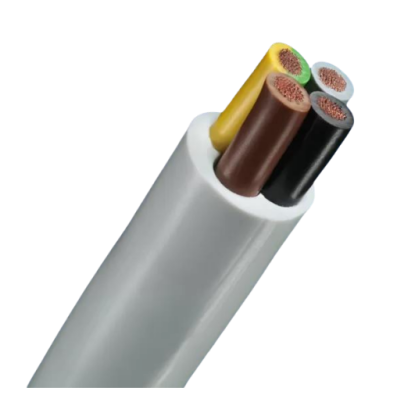

4 Core Control Cable for Instrumation
Conductor Material: Copper
Cable Shielding: Unscreened
No. of Cores: 4Core
Conductor Area: 1.5mm²
Jacket Colour: Grey
No. of Max Strands x Strand Size: 4 x 1.5mm²
Jacket Material: PVC
External Diameter: 7.7mm
Voltage Rating: 500V
Cable Structure Parameters:
|
Nominal Cross Section Area (PVC)
|
Overall Diameter (PVC)
|
Nominal Cross Section Area (LSZH)
|
Overall Diameter (LSZH)
|
|---|---|---|---|
|
0.75mm²
|
6.40mm
|
0.75mm²
|
6.40mm
|
|
1.00mm²
|
7.10mm
|
1.00mm²
|
7.10mm
|
|
1.50mm²
|
7.70mm
|
1.50mm²
|
7.70mm
|
|
2.50mm²
|
9.10mm
|
2.50mm²
|
9.10mm
|
|
4.00mm²
|
10.10mm
|
4.00mm²
|
11.10mm
|
|
6.00mm²
|
13.10mm
|
6.00mm²
|
13.10mm
|
Physical Characteristics:
Suitable for dry, damp and humid rooms
Rated voltage 300/500V
Temperature rating: fixed -40°C to +80°C, bending -5°C to +70°C
Minimum Bend Radius: Fixed – 6x OD, Bent – 12x OD
Standards:
VDE 0250 BS EN 50525-1, BS EN 50525-2-51, BS EN 50525-2-11
